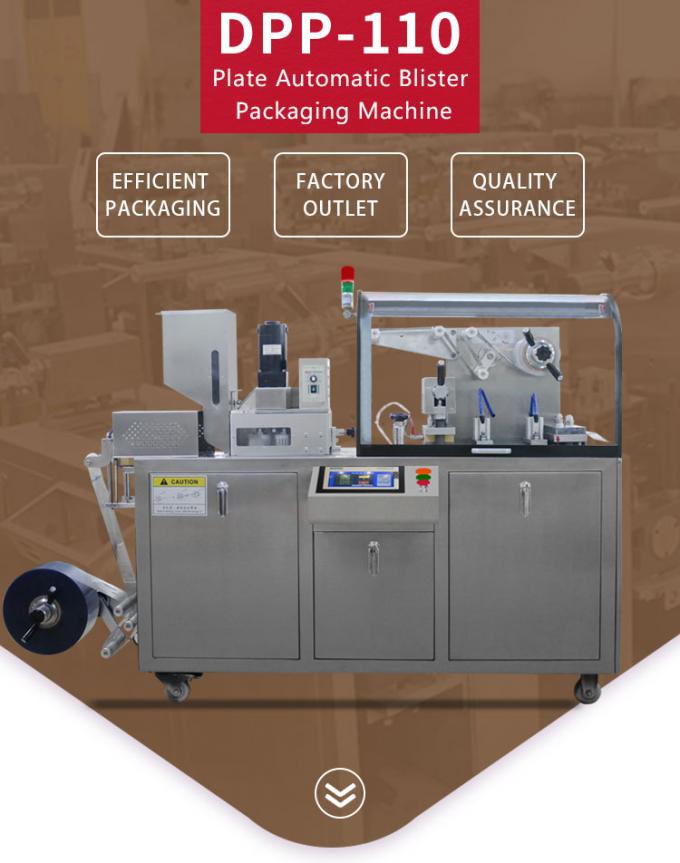

แผ่นอลูมิเนียม – เครื่องบรรจุพลาสติกพุพองสถานีทำงานทั้งหมดจะถูกนำมาใช้สี่คอลัมน์สำหรับตำแหน่ง

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

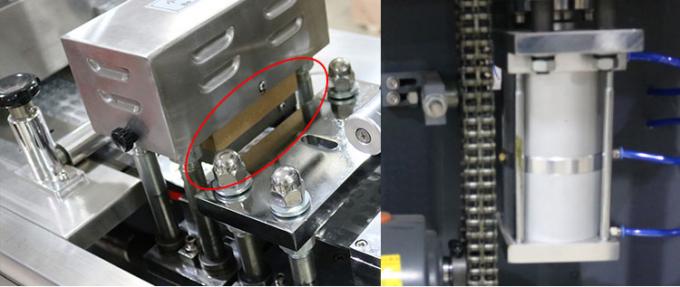

3.The machine adopts separation sectional combination: PVC forming, Feeding, Heating sealing for one section; Tropical cold aluminum forming, Heating sealing and cutting for another one section for separately packaging.



4. It adopts photoelectrical controlling system to make PVC, PTP, be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

5. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade

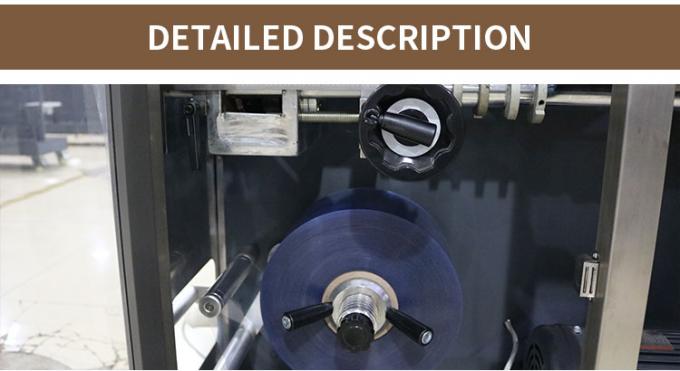

1.PVC material roll device

Roll film built-in design, save space, beautiful atmosphere

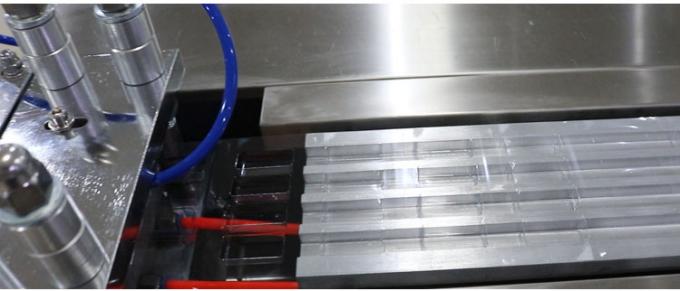

2. Forming device

Accurate mold positioning, uniform and symmetrical size distribution of molding modules

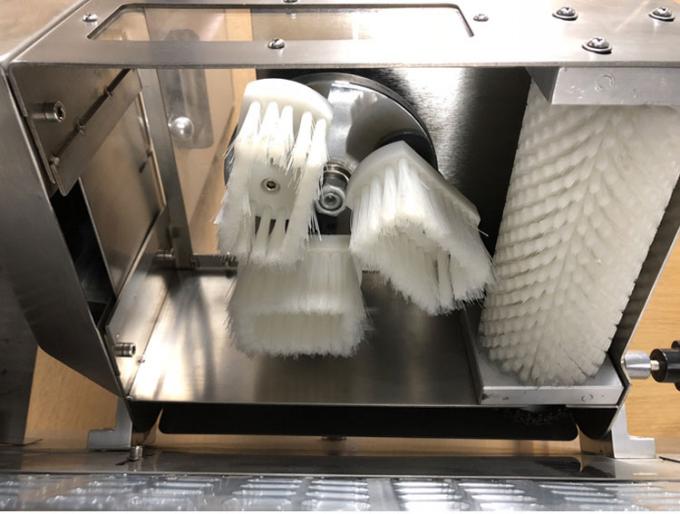

3. Feeding device

The feeding method can be manual, brush, track and pump type according to the nature of the material, easy to operate and high precision
