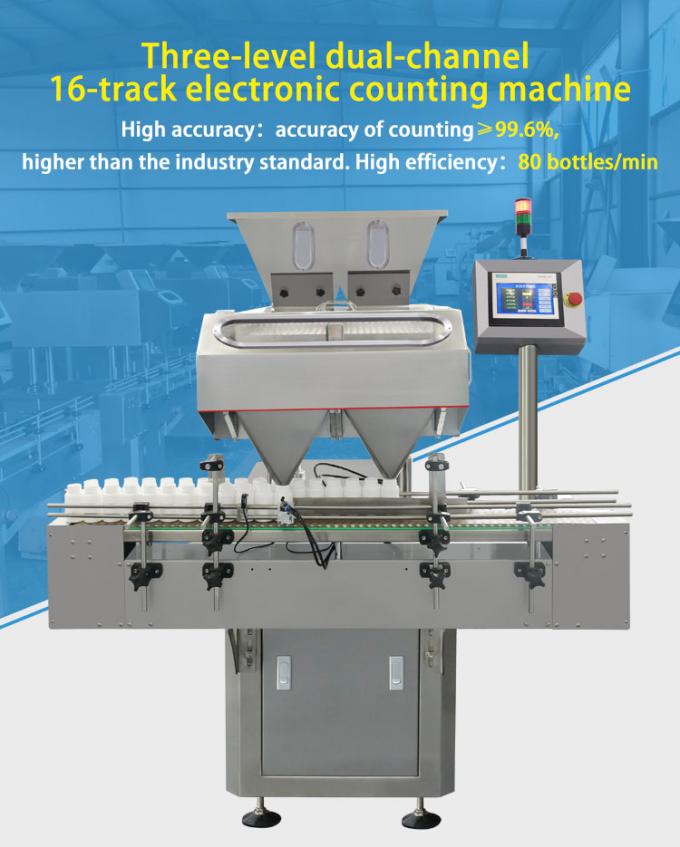

RQ-DSL-16B 20~80 Bottles / Min Capsule Pill Electronic Counting Machine
Detailed Product DescriptionFilling Range:1-9999 Grains (tablets) AdjustableAccuracy Rate:??99.6%Power:1.2KWApplicable Target:#00-5 Capsule, Soft Capsule, ? 5.5-20 Tablet,shaped,sugarcoated Tablet And ?3-20 PillVoltage:380VPressure:0.6MpaTouch Screen:SiemensHighlight:electronic tablet counting machin…
- Estimated Delivery : 7 Days Fast Delivery
- การรับรอง : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Filling Range: | 1-9999 Grains (tablets) Adjustable | ||
| Accuracy Rate: | ??99.6% | ||
| Power: | 1.2KW | ||
| Applicable Target: | #00-5 Capsule, Soft Capsule, ? 5.5-20 Tablet,shaped,sugarcoated Tablet And ?3-20 Pill | ||
| Voltage: | 380V | ||
| Pressure: | 0.6Mpa | ||
| Touch Screen: | Siemens | ||
| Highlight: |
electronic tablet counting machine, automatic capsule counting machine |
||
| Detailed Product Description | ||||
|---|---|---|---|---|
| After-sale | Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Detailed Product Description | |||
|---|---|---|---|
| Spare Item | Manufacturer | ||
| Motor | Taiwan TQG | ||
| Counting Photoelectric Head | Taiwan Everlight | ||
| Bottle Photoelectric Eye | Japan Panasonic | ||
| Button | France Schneider | ||
| Touch Screen | Germany Siemens | ||

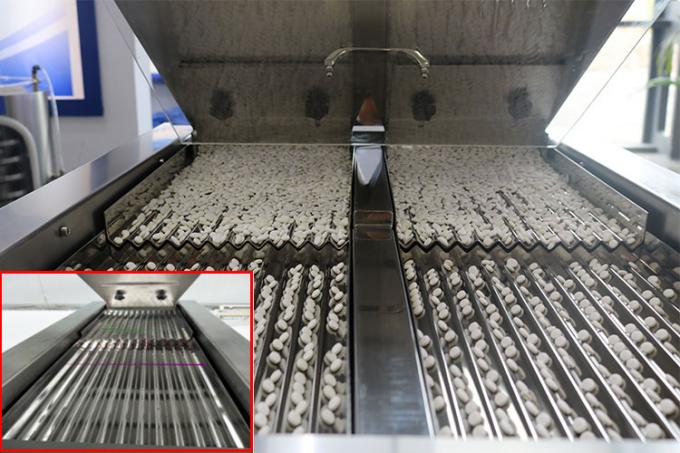

1. Multi-stage vibration design
Can effectively separate and accurate count the large,
irregular and stick material.

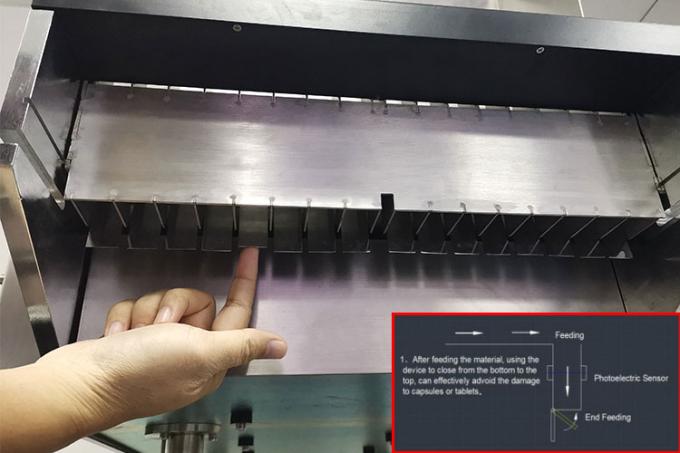

2. Flip plate mechanism
The flip plate mechanism obtained the national patent,
and not damage materials during work
Patent number):ZL 2016 2 0909949.8
2.
