ZP-29D Pill Press Machine Tablet Press Medicine Mass Production 75000 Pcs/H
Detailed Product DescriptionDies No.:29 SetMax. Production Capacity:75000 Pcs/hMax.?Pressure:100KNMax.?Dia. Of?Tablet:25mmMax. Depth Of Filling:24mmMax.?Thickness Of Tablet:12mmDia. Of Middle Die:??38.1mmLength Of Upper/Lower Punching Bar:115mm/133.4mmHighlight:75000Pcs/H Pill Press Machine, 100KN Pi…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Dies No.: | 29 Set | ||
| Max. Production Capacity: | 75000 Pcs/h | ||
| Max.?Pressure: | 100KN | ||
| Max.?Dia. Of?Tablet: | 25mm | ||
| Max. Depth Of Filling: | 24mm | ||
| Max.?Thickness Of Tablet: | 12mm | ||
| Dia. Of Middle Die: | ??38.1mm | ||
| Length Of Upper/Lower Punching Bar: | 115mm/133.4mm | ||
| Highlight: |
75000Pcs/H Pill Press Machine, 100KN Pill Press Machine |
||

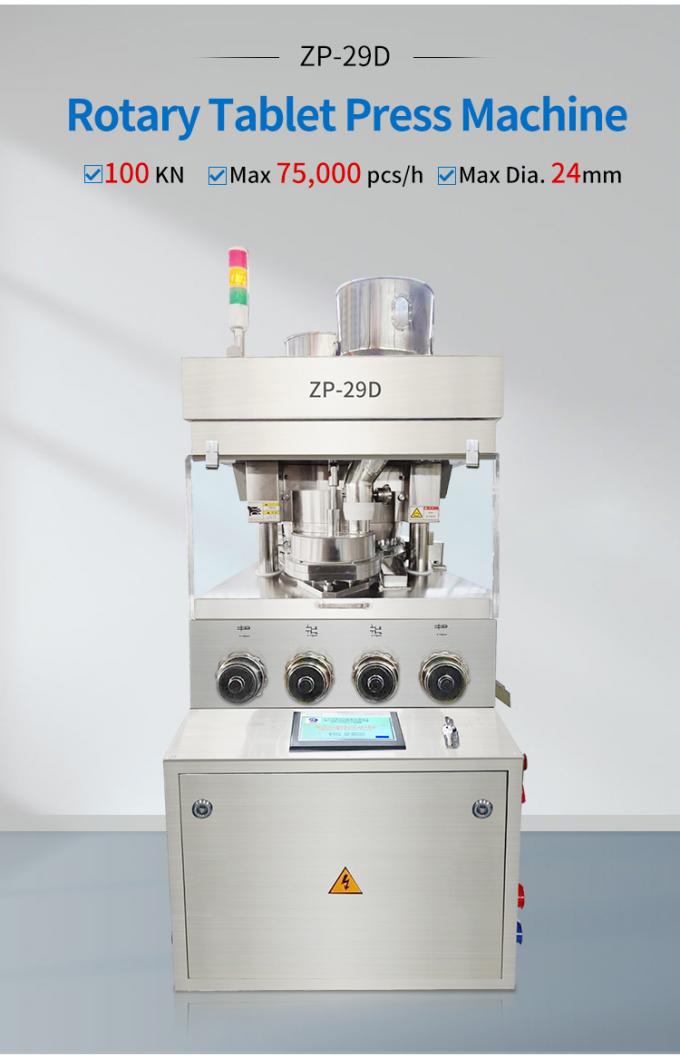

ZP-29D pill press machine tablet press medicine Mass production 75000 pcs/h
ZP-29D pill press tablet press machine is a fully automatic high speed (reaching 75,000 pieces per hour) rotary tablet press. This product can continuously compress powder and granules into round shaped tablets.
ZP-29D pill press tablet press machine advantages are high pressure (up to 100 KN) and easy operation for customers. It is also the first choice and essential product for pharmaceutical and chemical companies that require medium and large-scale production of tablets. At the same time, it is also suitable for materials that are difficult to press and form corrosive materials.
The advantages of this pill press tablet press machine are: its output is large, reaching 75,000 pieces per hour, and it is highly efficient and cost-effective. The machine adopts double pressure, with double feeding and discharging. Under the same speed, the output is higher than single pressure.
| Detailed Product Description | |||
|---|---|---|---|
|
Name |
pill press tablet press machine | ||
| Model | ZP- 29D | ZP- 27D | ZP- 35 |
| Power | 5.5 Kw | 5.5 Kw | 4 Kw |
| Production | 75000 Pcs/h | 90000 Pcs/h | 130000 Pcs/h |
| Max. Diameter | 24 mm | 25 mm | 16 mm |
| Max. Thickness | 12mm | 8 mm | 6 mm |
| Pressure | 100 KN | 100 KN | 80 KN |
| Weight | 1600 Kg | 1800 Kg | 1400 Kg |
