Zp 27D 120kn Large Pressure Rotary Tablet Press Machine With Deduster
Detailed Product DescriptionName:27 Punch Double Pressure Mode Tablet Press Machine With Deduster,candy Press MachineDies No.:27 SetMax. Production Capacity:55000 Pcs/hMax.?Pressure:120KNMax.?Dia. Of?Tablet:25mmMax. Depth Of Filling:35mmMax.?Thickness Of Tablet:17mmDia. Of Middle Die:38.1mmLength Of…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | 27 Punch Double Pressure Mode Tablet Press Machine With Deduster,candy Press Machine | ||
| Dies No.: | 27 Set | ||
| Max. Production Capacity: | 55000 Pcs/h | ||
| Max.?Pressure: | 120KN | ||
| Max.?Dia. Of?Tablet: | 25mm | ||
| Max. Depth Of Filling: | 35mm | ||
| Max.?Thickness Of Tablet: | 17mm | ||
| Dia. Of Middle Die: | 38.1mm | ||
| Length Of Upper/Lower Punching Bar: | 136.4mm/153.4mm | ||
| Dia.of Upper/Lower Punching Bar: | 25.4mm | ||
| Rotary Speed: | 7??17 R/min | ||
| Highlight: |
120KN Tablet Press Machine, 7.5kw Tablet Press Machine, 17 r/min rotary tablet press |
||

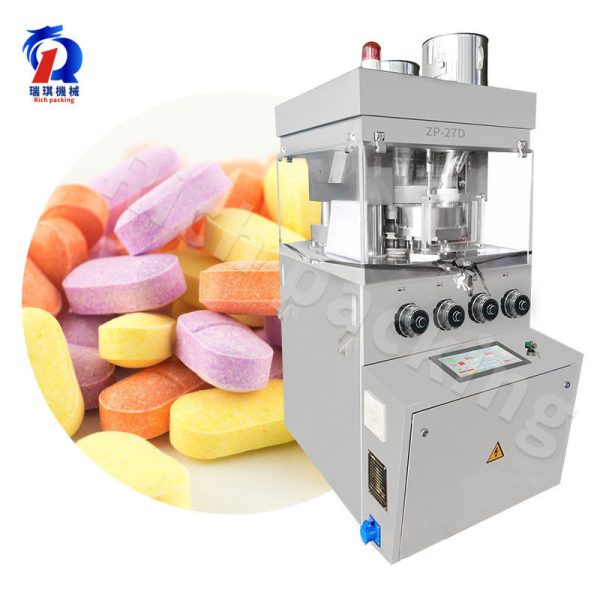

ZP-27D is a automatic rotary double pressure mode big diameter tablet press machine with deduster and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. It is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, it is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
| Detailed Product Description | |||
|---|---|---|---|
| tablet press machine Dies No. | 27 set | ||
| Max. Production Capacity | 55000 pcs/h | ||
| tablet press machine Max. Pressure | 120KN | ||
| Max. Dia. of Tablet | 25mm | ||
| Max. Depth of Filling | 35mm | ||
| Max. Thickness of Tablet | 17mm | ||
| tablet press machine Dia. Of Middle Die | ??38.1mm | ||
| Length of Upper/Lower Punching Bar | 136.4mm/153.4mm | ||
| Dia.of Upper/Lower Punching Bar | ??25.4mm | ||
| tablet press machine Rotary Speed | 7??17 r/min | ||
| tablet press machine Motor | 7.5kw | ||
| Weight of Machine | 1600kg | ||
| tablet press machine Outline Dim. | 1040×910×1690mm | ||
| tablet press machine Packing Size | 1340×1100×1960mm | ||
| Packing size of Dust Collector | 960×620×1460 mm | ||
