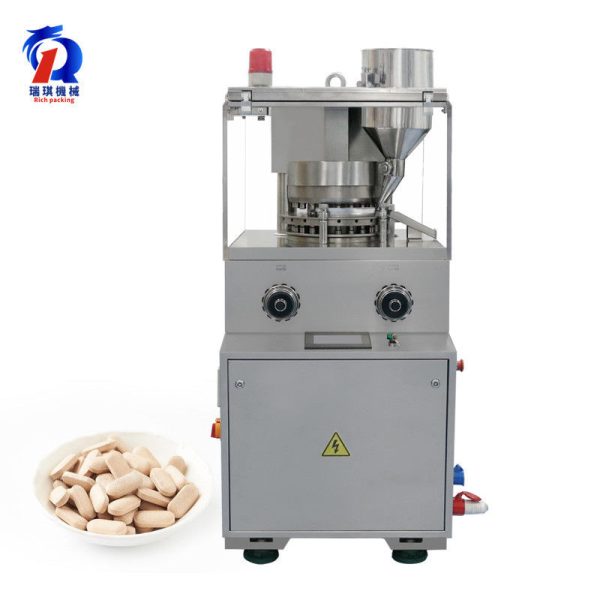

High Speed Auto Zp-20 Rotary Making Pharmaceutical Pill Press Tablet Press Machine



ZP-20 is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. ZP 20 Tablet press machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, Tablet press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.



Detailed Product Description
After-sale Provide	Engineers available to service machinery overseas
ZP Model	ZP-20	ZP-25	ZP-35	ZP-45
Power	4Kw	7.5Kw	4Kw	5.5Kw
Production Capacity	4W Pcs/h	6W Pcs/h	13W Pcs/h	20W Pcs/h
Pressure	800KN	100KN	80KN	100KN
Weight	1200Kg	2000Kg	1400Kg	1800Kg





Detailed Product Description
Spare Item	Specification	Manufacturer
Overload Protector	Self Design	Self Manufacture
Intelligent Lubrication System	American BIJUR DELIMON	American BIJUR DELIMON
Frequency Converter	VFD037B43B	Taiwan Delta
AC Contactor	3TB40 22-OXMO	Germany Siemens
Relay	MY-2NJ MY-4NJ	Japan Omron

Features:

1,High efficiency and high cost performance. This machine adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.

2,It meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.

3,The equipment has high precision, stable weight, sensitive adjustment and smooth operation.

3.1 The hole of upper punch, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).

3.2 The contact parts of die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.

3.3 The sensitivity of the hand wheel is 0.1mm.

3.4 The upper punch adapt "down pressure guide", will not jump,
