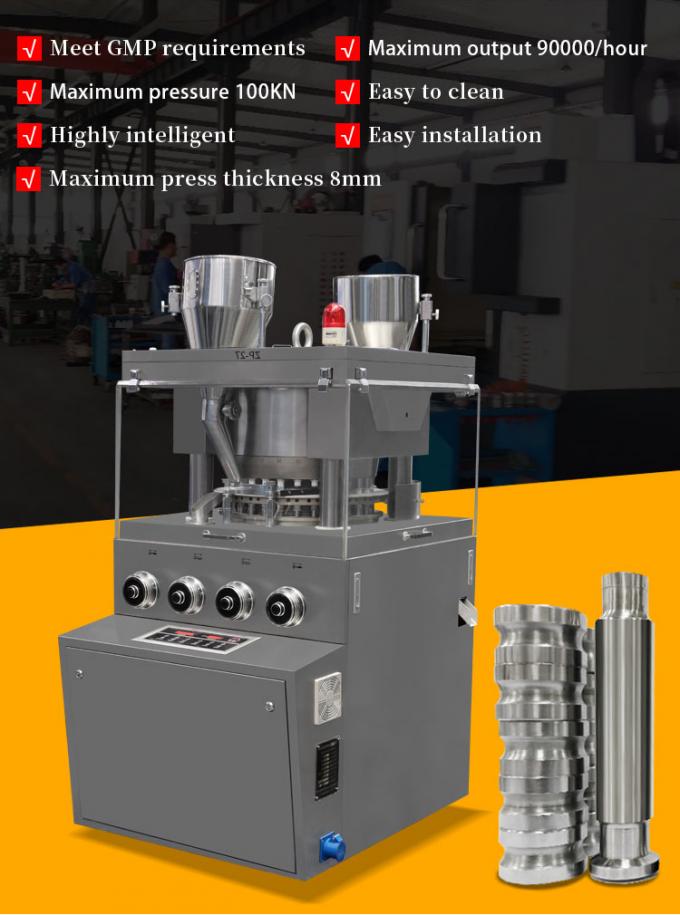

High Speed Automatic Custom Pill Rotary Tablet Press Machine
Detailed Product DescriptionDimension(L*W*H):1100*940*1755mmType:Rotary Tablet PressApplicable Material:Powder,granuleRotary Speed:5~28 R/minWarranty:1 YearHighlight:pill press machine, capsule press machineModelZP-27patentCasting subtraction structure patent Capacity90000 pcs/hApplicable materialP…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|

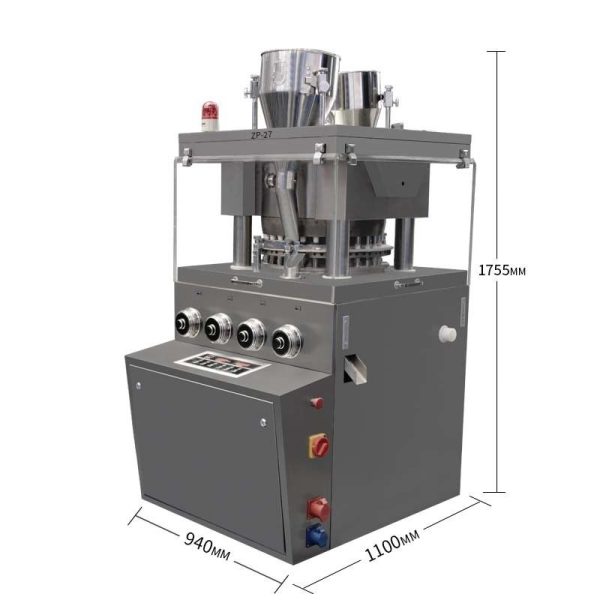

| Dimension(L*W*H): | 1100*940*1755mm | ||
| Type: | Rotary Tablet Press | ||
| Applicable Material: | Powder,granule | ||
| Rotary Speed: | 5~28 R/min | ||
| Warranty: | 1 Year | ||
| Highlight: |
pill press machine, capsule press machine |
||
| Model | ZP-27 | ||
| patent | Casting subtraction structure patent | ||
| Capacity | 90000 pcs/h | ||
| Applicable material | Powder,granule | ||
| Applicable tablet types | round tablets, special-shaped tablets, double color and annular tablet. | ||
| Max. pressure | 100KN | ||
| Max. tablet diameter | 25mm | ||
| Maximum press thickness | 8mm | ||
| GMP requirements |
The main body adopts stainless steel 304, All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". |
||
| Precision |
The hole of upper punch, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0). The sensitivity of the hand wheel is 0.1mm. |
||
| Power supply | 380/220V/50Hz | ||
| Power | 5.5kw | ||
| Weight | 1800kg | ||
| Outline dim. | 1100×940×1755mm | ||
| Packing/size | Standard export wooden case/1520×1100×2130mm | ||
| Warranty | One year | ||
| Method of Warranty |
Remote telephone and video guidance or home service according to customer requirements |
||
