RQ-DSL-8 Automatic Capsule Chewing Gum Filling Counting Machine
Detailed Product DescriptionProduct Name:Automatic Tablet Capsule Counting MachineType:Electronic Counting MachineCounting Precision:99.8%Filling Range:3000-9999 Pcs (Adjustable)Function:Counting And Bottle FillingApplication:Tablets,Capsule,Buttons,Chewing GumCapacity:10-30 Bottles/minHighlight:tab…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Product Name: | Automatic Tablet Capsule Counting Machine | ||
| Type: | Electronic Counting Machine | ||
| Counting Precision: | 99.8% | ||
| Filling Range: | 3000-9999 Pcs (Adjustable) | ||
| Function: | Counting And Bottle Filling | ||
| Application: | Tablets,Capsule,Buttons,Chewing Gum | ||
| Capacity: | 10-30 Bottles/min | ||
| Highlight: |
tablet capsule counting machine, automatic capsule counting machine |
||

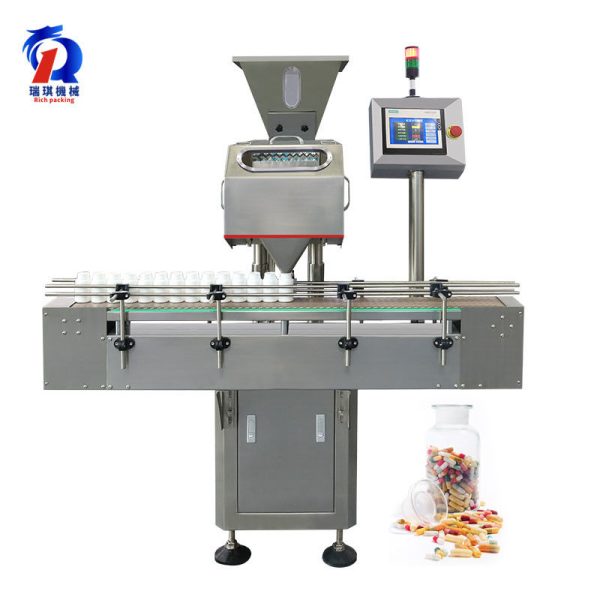

RQ-DSL-8 Automatic Capsule Chewing Gum Filling Counting Machine
| Detailed Product Description | ||||
|---|---|---|---|---|
| After-sale | Engineers Available To Service Machinery Overseas | |||
| DSL Counting Machine Model | 8 | 12 | 16 | 24 |
| Applicable material | Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules | |||
| Power | 0.6Kw | 0.6Kw | 1.2Kw | 1.5Kw |
| Max Capacity | 30 bottles/min | 40 bottles/min | 80 bottles/min | 90 bottles/min |
| Dimension(mm) | 1200*1280*1560 | 1360*1650*1650 | 1600*1400*1560 | 2000*1600*1680 |
| Weight | 210Kg | 490Kg | 640Kg | 690Kg |
| Detailed Product Description | |||
|---|---|---|---|
| Spare Item | Manufacturer | ||
| Motor | Taiwan TQG | ||
| Counting Photoelectric Head | Taiwan Everlight | ||
| Bottle Photoelectric Eye | Japan Panasonic | ||
| Button | France Schneider | ||
| PLC | Germany Siemens | ||

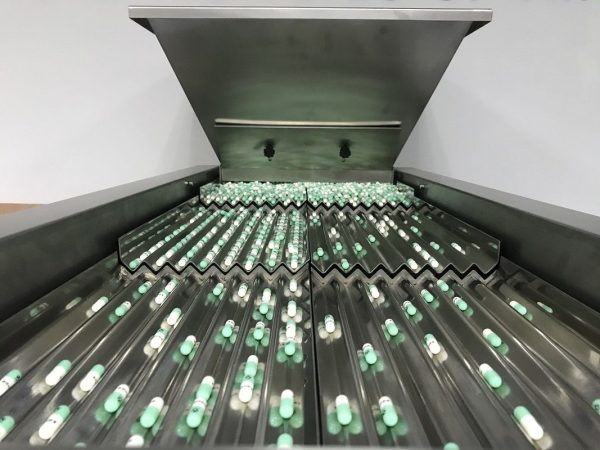

Flip-flop Subassembly Mechanism Obtains
Tablet Capsule Counting Machine Flip-flop Subassembly Mechanism Obtains The National Paten,Does Not Damage The Material When Opening And Closing.

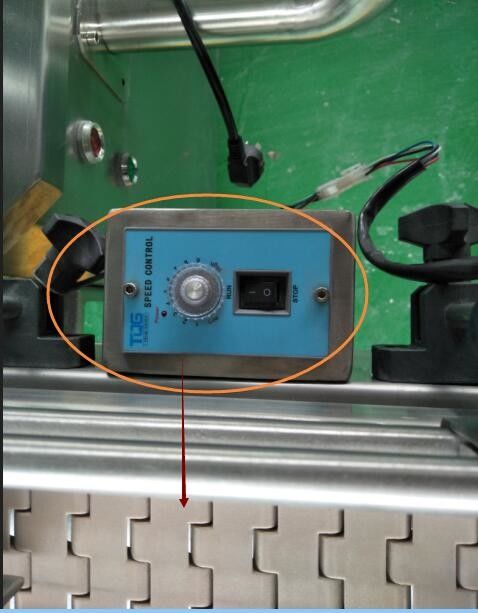

Speed Controller Of Conveyor
Our conveyor can adjust the speed for coordinating the wholesale line
