CE Automatic Pharma Capsule Filling Machine / Gelatin Capsule Making Machine
Detailed Product DescriptionProduct Name:Fully Automatic Capsule Filling MachineType:Capsule Filling Machine NJPFilling Material:Powder/GranulePillCapsule Size:00,0,1,2,3,4,5# CapsuleMachine Material:304/316L Stainless SteelPower Supply:380V/220V 50HZFunction:Capsule Filling And Sealing MachineHighl…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Product Name: | Fully Automatic Capsule Filling Machine | ||
| Type: | Capsule Filling Machine NJP | ||
| Filling Material: | Powder/GranulePill | ||
| Capsule Size: | 00,0,1,2,3,4,5# Capsule | ||
| Machine Material: | 304/316L Stainless Steel | ||
| Power Supply: | 380V/220V 50HZ | ||
| Function: | Capsule Filling And Sealing Machine | ||
| Highlight: |
automatic capsule filler, auto capsule filling machine |
||

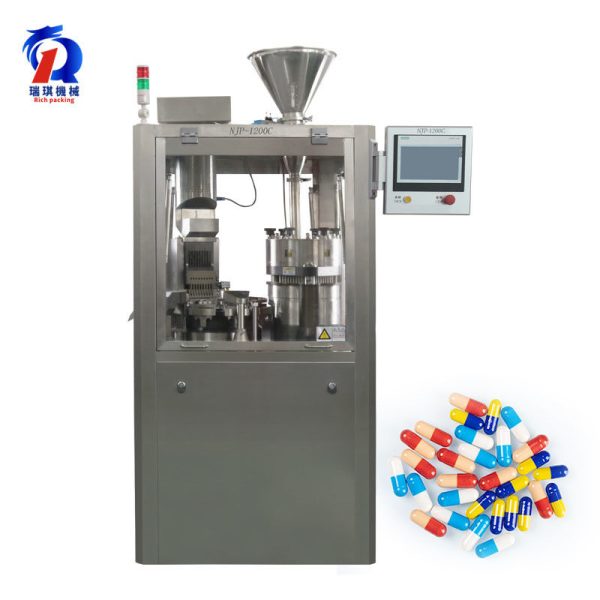

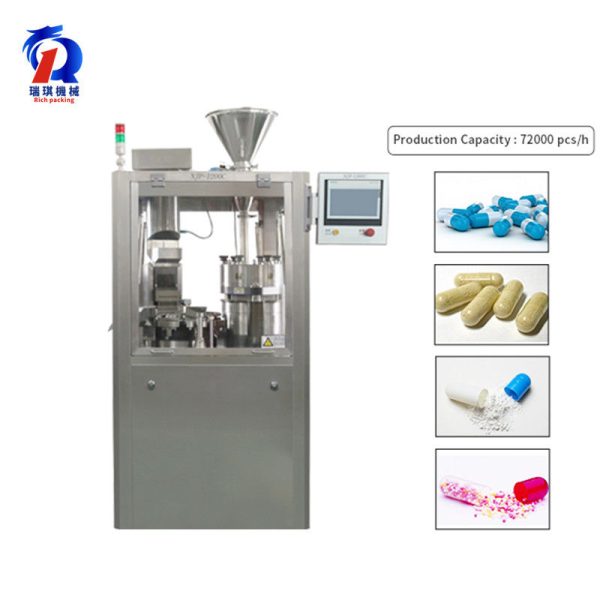

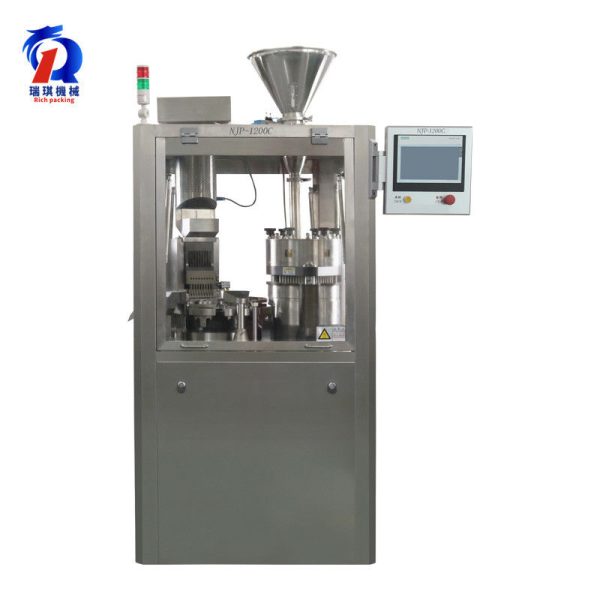

NJP-1200C Automatic Pharmaceutical Capsule Filling Machine/Gelatin Capsule Making Machine
2:Automatic Capsule Filling Machine
3:Hard Capsule Filling Machine
4:Capsule Filler Machine
5:NJP Capsule Filling Machine
GMP requirements NJP-1200C Capsule Filling Machine is the third generation of innovative products.
It has 6 technological innovations and 2 invention patents. Capsule filling machine can fill powder,
granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically
finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected
and finished products output. NJP-200C Capsule filling machine has the advantages of accurate loading,
stable operation and no dust, NJP-1200C Capsulefilling machine is an ideal equipment for filling Chinese,
Western medicines and health care product .
| Detailed Product Description | ||||
|---|---|---|---|---|
| Filling Machine Model | 200C | 400C | 800C | 1200C |
| Capsule size | 000,00,0,1,2,3,4,5 # Size Capsule | |||
| Power | 3Kw | 3.5Kw | 5Kw | 5.5Kw |
| Production Capacity | 12000 Pcs/h | 24000 Pcs/h | 48000 Pcs/h | 72000 Pcs/h |
| Dimension | 805*705*1760mm | 805*705*1760mm | 865*855*1900mm | 900*870*1950mm |
| Weight | 600Kg | 600Kg | 900Kg | 1100Kg |
| Detailed Product Description | |||
|---|---|---|---|
| Spare Parts Item | Specificatio | Qty | Manufacturer |
| Touch Screen | 6AV6/648-0BC11-3AX0 | 1 | Germany Siemens |
| PLC | 6ES7/288-1ST20-0AA0 | 1 | Germany Siemens |
| AC Contactor | 3TB42 | 4 | Germany Siemens |
| Thermal Relay | 3UA59 | 3 | Germany Siemens |
| Main Motor | CH-30-1100W | 1 | Dongli |
The capsule filling machine has faster filling speed, smaller size difference of capsule filling machine,
compact powder and capsule shell finishing, capsule cap finishing and capsule package. In addition,
the capsule filling machine has many advantages, such as fast arrangement, high efficiency, simple operation,
convenient maintenance, low power consumption and so on. It is the preferred capsule filling machine for
pharmaceutical factories, health products factories, hospital preparation rooms, etc.
