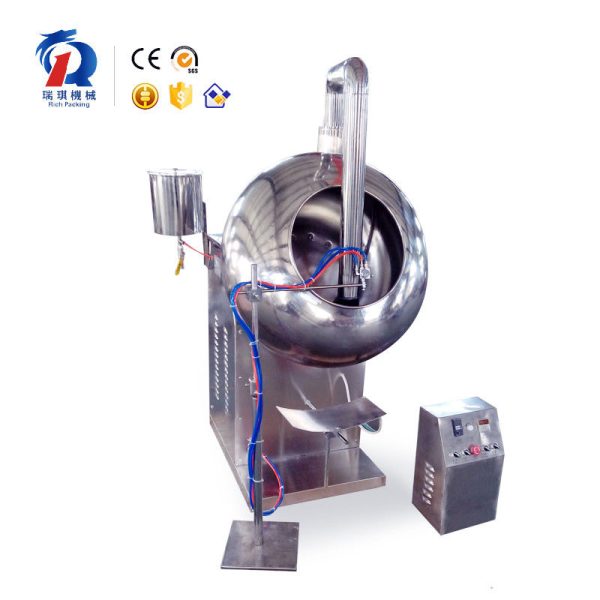

Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine
Detailed Product DescriptionName:Pharmaceutical Bean Snack Sugar Pill Food Coating Machine PriceModel:BYC?C1000Throughput:50??70kg/timePot Body Inclination:30??Motor Power:1.5kWFan Power:200WLiquid Tank Volume:10LSpray Gun:According To Customer?? Requirements.Speed:0??32r/minPower Supply:380V/220V/50HzWe…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | Pharmaceutical Bean Snack Sugar Pill Food Coating Machine Price | ||
| Model: | BYC?C1000 | ||
| Throughput: | 50??70kg/time | ||
| Pot Body Inclination: | 30?? | ||
| Motor Power: | 1.5kW | ||
| Fan Power: | 200W | ||
| Liquid Tank Volume: | 10L | ||
| Spray Gun: | According To Customer?? Requirements. | ||
| Speed: | 0??32r/min | ||
| Power Supply: | 380V/220V/50Hz | ||
| Weight: | 300kg | ||
| Electric Heating Power: | 4kW | ||
| Highlight: |
tablet coating machine, auto coater machine |
||
Pharmaceutical Bean Snack Sugar Pill Food Coating Machine Price
Introduction of coating machine:
The coating machine is used to coat the core of Chinese and Western medicine tablets with thin film. The coating machine integrates strength, weakness, hydraulic pressure and pneumatics. The film coating machinery can control the speed automatically. The spraying accessories are sprayed onto the surface of the tablets by automatic electric control method.
Features of coating machine:
The coating machine is a new type equipment improved on the basis of original common type sugar coating machine.The film coating machinery composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc.The tablets make continuous and complex track movement in the coating pan, let the coating fluid cover the tablet core evenly, the controllable normal-temperature hot air in the pan will dry the tablets at the same time, let the tablet rapidly form a firm, fine, complete and smooth surface film.
| Detailed Product Description | |||
|---|---|---|---|
| Model | BYC-1000 | ||
| Throughput | 50??70kg/time | ||
| Pot body inclination | 30° | ||
| Motor power | 1.5kW | ||
| Fan power | 200W | ||
| Liquid tank volume | 10L | ||
| Spray gun | According to customer’ requirements. | ||
| Speed | 0??32r/min | ||
| Electric heating power | 4kW | ||
| Power Supply | 380V/50Hz | ||
| Weight | 300kg | ||
