High Pressure Tablet Press Machine With Pressure Overload Protection Device
Detailed Product DescriptionName:Tablets Drugs Die Exchangeable Pill Press MachinesDies No.:55setMax. Production Capacity:260000 Pcs/hMax.?Pressure:120KNMax.?Thickness Of Tablet:8mmMax. Tablet Diameter:13mmMotor:7.5kwWeight Of Machine:2000kgOutline Dim.:1220??1120??1850 MmPacking Size:1600??1300??2160mm…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | Tablets Drugs Die Exchangeable Pill Press Machines | ||
| Dies No.: | 55set | ||
| Max. Production Capacity: | 260000 Pcs/h | ||
| Max.?Pressure: | 120KN | ||
| Max.?Thickness Of Tablet: | 8mm | ||
| Max. Tablet Diameter: | 13mm | ||
| Motor: | 7.5kw | ||
| Weight Of Machine: | 2000kg | ||
| Outline Dim.: | 1220??1120??1850 Mm | ||
| Packing Size: | 1600??1300??2160mm | ||
| Highlight: |
capsule press machine, tablet pill press machine |
||

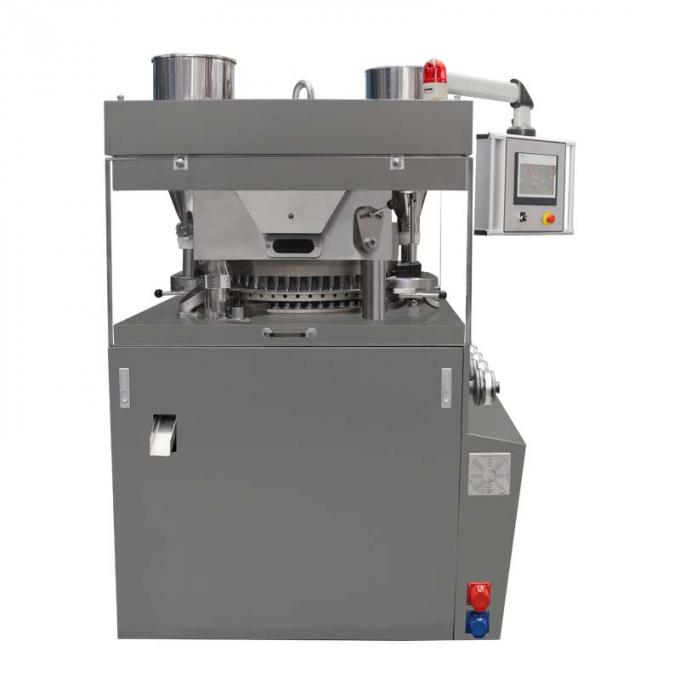

Tablets Drugs Die Exchangeable Pill Press Machines
Introduction of tablet press machine
Tablet press machines are mainly used for tablet process research in the pharmaceutical industry. TThe tablet press machinery meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing.
Features of automatic pharmacy tablet press machine:
1.High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.
2.The tablet press machine equips high equipment configuration. The core components are all famous brand products such as German SIEMENS and Japanese OMRON, with long service life and low failure rate.
3.With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.
4.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
5.The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.
| Detailed Product Description | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||

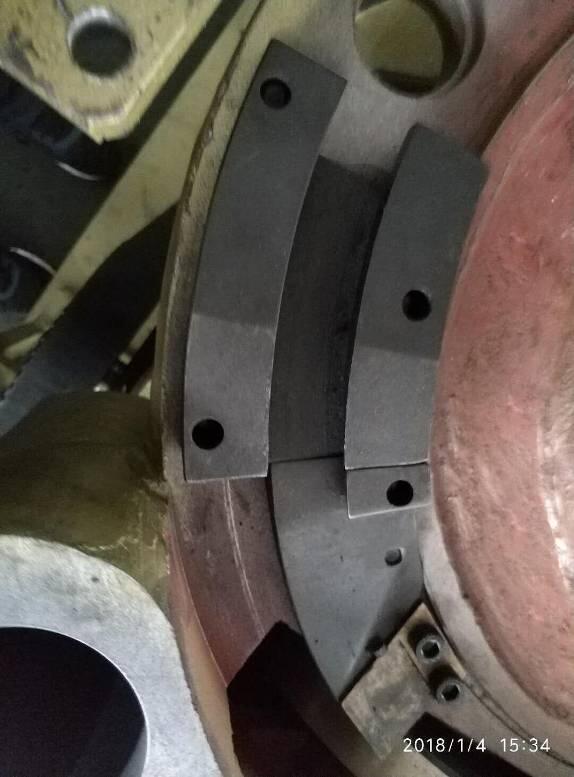

Lower pressure wheel shaft and the lower rail guide are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and replacement. Because under the pressure of wheel and rail down in 3 years of running, possible wear, need to be replaced, if use the old methods in the past, you need one day to remove, it is very time-consuming, and the casting structure requires only one hour can be completed.
