Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life
Detailed Product DescriptionName:Automatic Ointment Pharmaceutical Small Cartoning Box Packaging MachineSpeed:30-125 Carton/minTotal Power:0.750 KWSize Range Of Carton:L(70-185)*W(35-90)*H(14-50)mmRange Of Folding Times Of Instructions:1-4 FoldPower Supply:220/380V 50HzSize Range Of Instructions…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | Automatic Ointment Pharmaceutical Small Cartoning Box Packaging Machine | ||
| Speed: | 30-125 Carton/min | ||
| Total Power: | 0.750 KW | ||
| Size Range Of Carton: | L(70-185)*W(35-90)*H(14-50)mm | ||
| Range Of Folding Times Of Instructions: | 1-4 Fold | ||
| Power Supply: | 220/380V 50Hz | ||
| Size Range Of Instructions: | L(78-250)*W(90-170)mm | ||
| Instructions Weight: | 60-70g/?O | ||
| Net Weight Of Machine: | 1600kg | ||
| Pressure Intensity: | ??0.6MPa | ||
| Air Consumption: | 120-160 L/min | ||
| Overall Size Of Machine: | 3100*1100*1550?L | ||
| Carton Weight: | 250-350g/?O | ||
| Highlight: |
auto cartoner machine, cartonator packing machine |
||

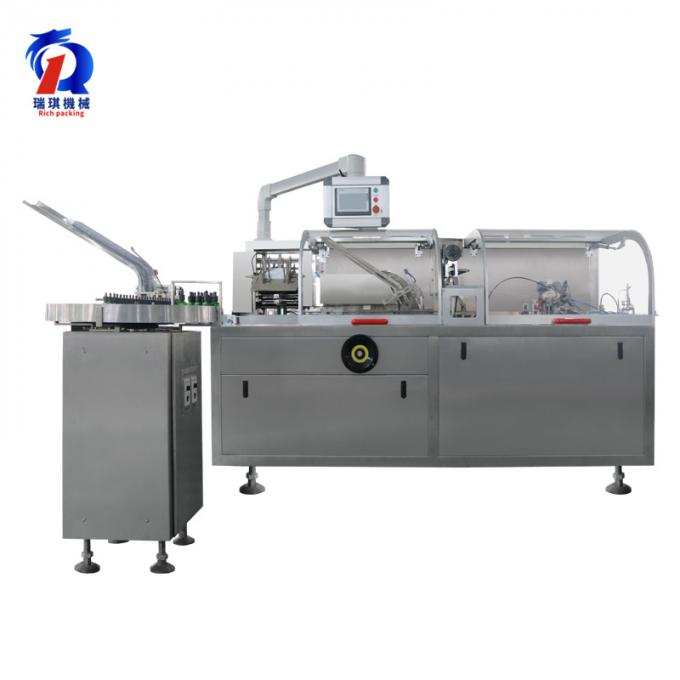

Automatic Ointment Pharmaceutical Small Cartoning Box Packaging Machine
Introduction of cartoning machine:
This cartoning box packing mchinery has high integration,this automatic horizontal cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.The cartoning mchine equips high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet,material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed with improves work efficiency.
Features of cartoning box packing machine:
1. All the materials of this horizontal cartoning packing mahine are made of nickel-chromium plated or stainless steel material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position
is tempered and durable.
2. The cartonning packaging machine is equipped with protective device. When the machine breaks down, the protective function will be activated immediately. It will not waste materials and ensure the safety of operators.
3. spare part of this cartoning box packing machine adopt international famous brands, such as Siemens, Baker, Omron, etc.
4. When the cartoning machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.
| Detailed Product Description | |||
|---|---|---|---|
| Model | RQ-ZH-12OW | ||
| Speed | 30-125 carton/min | ||
| Total power | 0.750 KW | ||
| Power supply | 220/380V 50Hz | ||
| Requirements of carton | size range of carton:L(70-185)*W(35-90)*H(14-50)mm | ||
| carton weight:250-350g/?O | |||
| Requirements of instructions | size range of instructions:L(78-250)*W(90-170)mm | ||
| range of folding times of instructions:1-4 fold | |||
| instructions weight:60-70g/?O | |||
| Pressure | pressure intensity:≥0.6MPa | ||
| air consumption:120-160 L/min | |||
| Overall size of machine | 3100*1100*1550?L | ||
| Net weight of machine | about 1600kg | ||
When the machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair that save time.
Easy to adjust, only 3-5 parts need to be replaced to pack products of different sizes.
