Low Noise Blister Packaging Equipment 1200-4200 Plates / H Production Capacity
Detailed Product DescriptionName:Alu Alu Rapid Pvc Precision Gears Pill Pharmaceutical Medical Tablet Blister Packaging Machine SupplierMax. Shaping Dia. And Depth:145*100*15mm Max. Depth 26mm(custom-made)Blanking:10??35 Times/minProduction Capacity:4200 Plates/hStandard Travel Range:50??120mmStandard…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | Alu Alu Rapid Pvc Precision Gears Pill Pharmaceutical Medical Tablet Blister Packaging Machine Supplier | ||
| Max. Shaping Dia. And Depth: | 145*100*15mm Max. Depth 26mm(custom-made) | ||
| Blanking: | 10??35 Times/min | ||
| Production Capacity: | 4200 Plates/h | ||
| Standard Travel Range: | 50??120mm | ||
| Standard Plate: | 80*57mm | ||
| Power Of Main Motor: | 1.5kW | ||
| Total Power: | 3.8kW | ||
| Power: | 380V/220V/50Hz | ||
| Vacuum: | 0.4MPa-0.6MPa | ||
| Noise: | <75dBA | ||
| Thickness And Width Of PVC: | 0.15??0.5*120mm | ||
| Thickness And Width Of PTP: | 0.02??0.035*120mm | ||
| Dialyzing Paper: | 50??100g*120mm | ||
| Weight: | 850 Kg | ||
| Size: | 2300*635*1500 Mm | ||
| Highlight: |
pill blister pack machine, tablet blister packing machine |
||

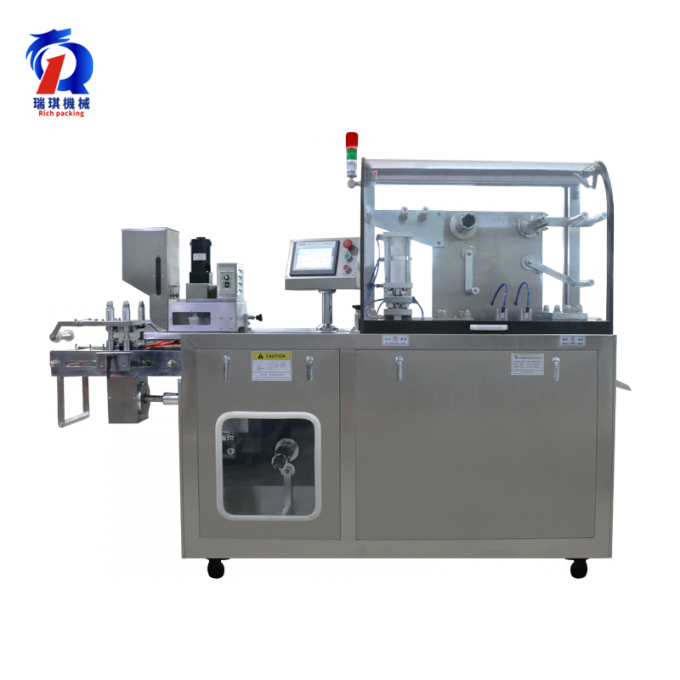

Alu Alu Rapid pvc Precision Gears Pill Pharmaceutical Medical Tablet Blister Packaging Machine Supplier
Brief introduction of blister packaging machine:
Aluminum plastic blister packaging machine is a dual-purpose machine with adjustable stroke, photo-electric plate, modular working position structure, aluminum-plastic and aluminum-aluminum, the blister packing machine adopts the integrated automatic control technology of frequency conversion and machine, electricity, light and speed and strictly conforms to the GMP standard of medicine.
| Detailed Product Description | |||
|---|---|---|---|
| Model | DPP-150 | ||
| Blanking | 10??35 times/min | ||
| Production Capacity | 1200-4200 plates/h | ||
| Max. Shaping Dia. And Depth | 145*100*15mm Max. Depth 26mm(custom-made) | ||
| Standard Travel Range | 50??120mm | ||
| Standard Plate | 80*57mm | ||
| Power ofMain Motor | 1.5kW | ||
| Total Power | 3.8kW | ||
| Power | 380V/220V/50Hz | ||
| Vacuum | 0.4MPa-0.6MPa | ||
| Noise | <75dBA | ||
| Thickness and Width of PVC | 0.15??0.5*150mm | ||
| Thickness and Width of PTP | 0.02??0.035*150mm | ||
| Dialyzing Paper | 50??100g*150mm | ||
| Mold Cooling | Running water or circulating water | ||
| Weight | Net weight 850 kg ;Gross weight1400 kg | ||
| Overall Size of Machine | 2300*635*1500 mm | ||
| Packing Size | 2750*950*1800mm | ||
The blister packing machine data comes from Guangdong Rich Packaging Machinery Co., Ltd
Feactures of blister packaging machine
1.This blister packing machine is widely used for the aluminum-plastic / paper-plastic / aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc.
2.There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package machine with all kinds of size can be satisfied.
3.Operations of blister sheet correcting & heating, the pressing & forming, the face/back surface pattern impressing, the cylinder's thermal sealing, the automatic feeding, the automatic batch No. printing and automatic cutting can all be completed by this machine, and the automatic blister packing machine is easy and reliable to operate.
4.Spare parts of blister packing machine as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and the blister packing machine is easy to change moulds.
5.With manipulator towing and adjustable travel range, this blister packing machinery can be suited for blister packing of various size.
