Fully Automatic Hard Capsule Filling Machine With 12 Months Warranty
Detailed Product DescriptionName:NJP Series Fully Automatic Control Hard Capsule 0 00 Capsule Filling MachineAfter-sales Service Provided:Engineers Available To Service Machinery Overseas,Video Technical Support,Online SupportCapacity:8200 Ccapsules / MinDimension(l*w*h):1800??1390??2200mmWeight:4000K…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | NJP Series Fully Automatic Control Hard Capsule 0 00 Capsule Filling Machine | ||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | ||
| Capacity: | 8200 Ccapsules / Min | ||
| Dimension(l*w*h): | 1800??1390??2200mm | ||
| Weight: | 4000Kg | ||
| Type: | Filling Machine | ||
| Automatic Grade: | Automatic | ||
| Voltage: | 220V/380V 50Hz | ||
| Condition: | New | ||
| Driven Type: | Electric | ||
| Power: | 14KW | ||
| Warranty: | 12 Momths | ||
| Highlight: |
automatic capsule filler, auto capsule filling machine |
||

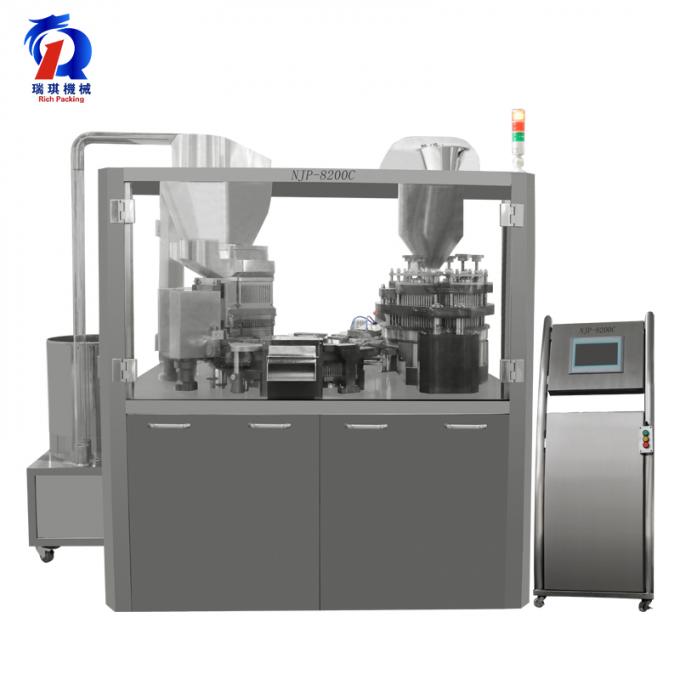

NJP Series Fully Automatic Control Hard Capsule 0 00 Capsule Filling Machine
| Detailed Product Description | |||
|---|---|---|---|
| Production capacity | 492000pcs/h | ||
| Net weight of machine | 4000Kg | ||
| Overall size of machine | 1800×1390×2200mm | ||
| Power | 380V 50Hz | ||
| Total power | 14KW | ||
| No.of segment bores | 58 | ||
| Vacuum | -0.02~0.06Mpa | ||
| Dust collector | Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa | ||
| Noise | <75DB(A) | ||
| Making rate | Empty capsule 99.9% Full capsule 99.8% | ||
| Applicable capsule | 00,0,1,2,3,4,5# | ||
| Filling error | Western medicine:±3% Chinese medicine:±4% | ||
| Applicable product | Power,granule,pellet,tablet | ||
1. The capsule filling machine is the third generation of innovative products of pharmacy machinery.
2. Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).
3. The capsule filling machine has the advantages of accurate loading, stable operation and no dust.
4. This pharmaceutical capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.
5. Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution
6.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the
adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.
7.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
8.equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
