Electric Automatic Capsule Filling Machine 6000 Capsules / Min Capacity
Detailed Product DescriptionName:Herbal Pellet Filler Price Automatic Production Line Capsule Filling MachineAfter-sales Service Provided:Engineers Available To Service Machinery Overseas,Video Technical Support,Online SupportCapacity:6000 Capsules / MinWeight:3000KgWarranty:12 MomthsType:Filling Ma…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | Herbal Pellet Filler Price Automatic Production Line Capsule Filling Machine | ||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | ||
| Capacity: | 6000 Capsules / Min | ||
| Weight: | 3000Kg | ||
| Warranty: | 12 Momths | ||
| Type: | Filling Machine | ||
| Voltage: | 220V/380V 50Hz | ||
| Condition: | New | ||
| Driven Type: | Electric | ||
| Automatic Grade: | Automatic | ||
| Dimension(l*w*h): | 1500*1250*2200mm | ||
| Power: | 11KW | ||
| Highlight: |
automatic capsule filler, auto capsule filling machine |
||
Herbal Pellet Filler Price Automatic Production Line Capsule Filling Machine
| Detailed Product Description | |||
|---|---|---|---|
| Production capacity | 360000pcs/h | ||
| Net weight of machine | 3000Kg | ||

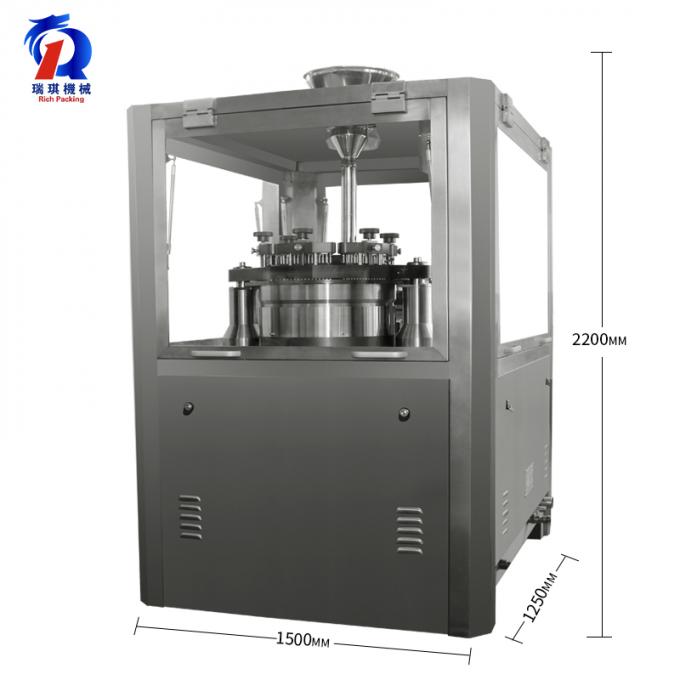

| Overall size of machine | 1500×1250×2200mm | ||
| Power | 380V 50Hz | ||
| Total power | 11KW | ||
| No.of segment bores | 43 | ||
| Vacuum | -0.02~0.06Mpa | ||
| Dust collector | Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa | ||
| Noise | <75DB(A) | ||
| Making rate | Empty capsule 99.9% Full capsule 99.8% | ||
| Applicable capsule | 00,0,1,2,3,4,5# | ||
| Filling error | Western medicine:±3% Chinese medicine:±4% | ||
| Applicable product | Power,granule,pellet,tablet | ||
1.This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.
2.The capsule filling machine has the advantages of accurate loading, stable operation and no dust.
3.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
4.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
5.When we are manufacture the capsule filling machines ,the filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, Guangdong Rich Packing Machinry Co. Ltd can provide the Teflon coating processing service)
6.The capsule filling machine equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
samples of capsule filling machine:Herbal Pellet Filler Price Automatic Production Line Capsule Filling Machine
