Automatic Capsule Powder Packing Machine 228000 Capsules / Hour Capacity
Detailed Product DescriptionName:NJP3800 Automatic Capsule Filling Machine & Capsule Filler MachineAfter-sales Service Provided:Engineers Available To Service Machinery Overseas,Video Technical Support,Online SupportDimension(l*w*h):1395??1180??2200 MmCapacity:228000 Capsules/hourWeight:2200KGConditi…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | NJP3800 Automatic Capsule Filling Machine & Capsule Filler Machine | ||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | ||
| Dimension(l*w*h): | 1395??1180??2200 Mm | ||
| Capacity: | 228000 Capsules/hour | ||
| Weight: | 2200KG | ||
| Condition: | New | ||
| Type: | Filling Machine | ||
| Voltage: | 220V/380V 50Hz | ||
| Driven Type: | Electric | ||
| Power: | 10.5kw | ||
| Automatic Grade: | Automatic | ||
| Warranty: | 1 Year | ||
| Highlight: |
automatic capsule filler, pill filler machine |
||

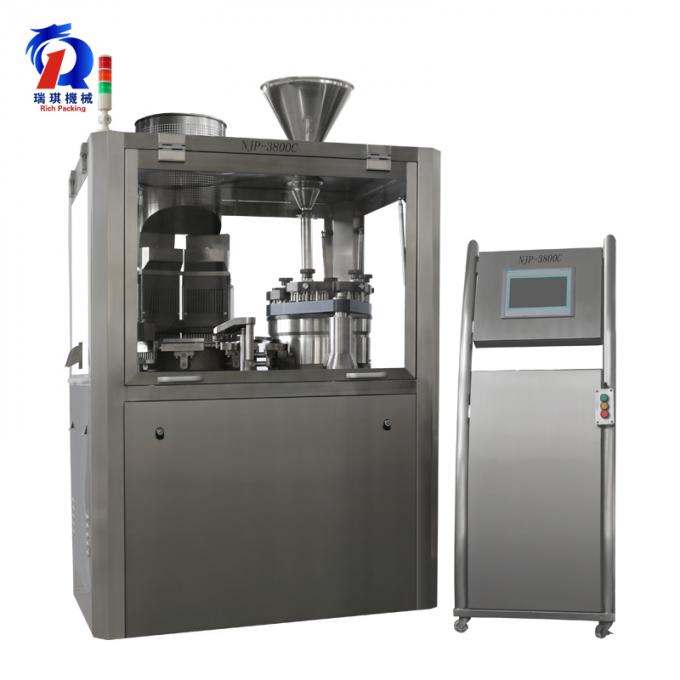

NJP3800 Automatic Capsule Filling Machine & Capsule Filler Machine
| Detailed Product Description | |||
|---|---|---|---|
| Production capacity | 228000 pcs/h | ||
| Net weight of machine | 2200Kg | ||
| Overall size of machine | 1395×1180×2200 | ||
| Power | 380/220V 50Hz | ||
| Total power | 10.5KW | ||
| No.of segment bores | 27 | ||
| Vacuum | 120m3/h-0.04-0.08Mpa | ||
| Dust collector | 24.5Kpa 210m3/h | ||
| Noise | <75DB(A) | ||
| Making rate | Empty capsule 99.9% Full capsule 99.8% | ||
| Applicable capsule | 00,0,1,2,3,4,5# | ||
| Filling error | Western medicine:±3% Chinese medicine:±4% | ||
| Applicable product | Power,granule,pellet,tablet | ||
1.This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.
2.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
3.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
5.Are you a factory or a trading company??
We are the manufacturer, and have been in industry for more than 26 years.
6.What's your payment way??
T/T by our bank account directly, or L/C, or by the West Union, or in cash.
7.How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.

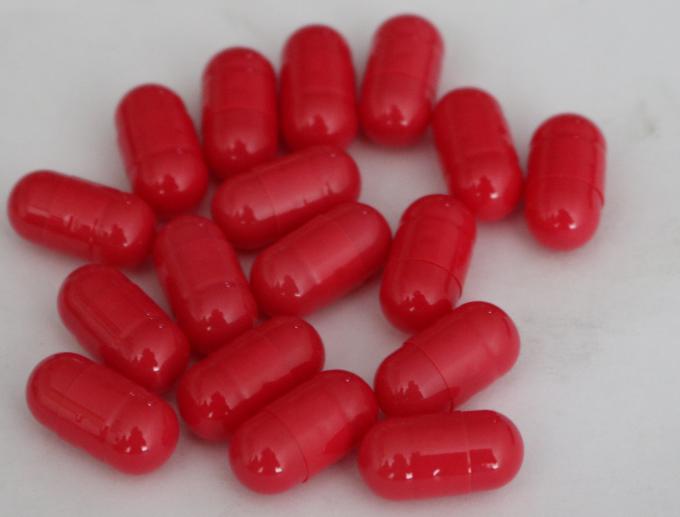

samples of capsule filling machine

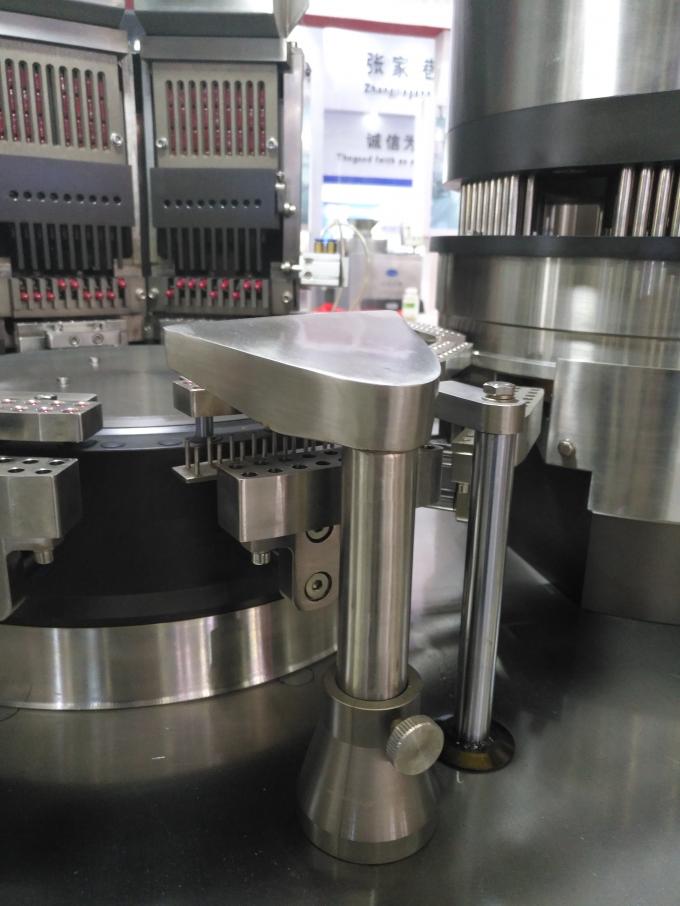

lock capsule device of capsule filling machine
