Pharmaceutical Automatic Capsule Filling Machine With 1 Year Warranty
Detailed Product DescriptionName:NJP3800 Automatic Capsule Filling / Pill Filler Powder MachineAfter-sales Service Provided:Engineers Available To Service Machinery Overseas,Video Technical Support,Online SupportCapacity:228000 Capsules/hourDimension(l*w*h):1395??1180??2200 MmWeight:2200KGType:Fillin…
- Estimated Delivery : 7 Days Fast Delivery
- Certification : cGMP CE ISO SGS and etc
- After-Sales Provided : Engineers available to service machinery overseas.
| Detailed Product Description | |||
|---|---|---|---|
| Name: | NJP3800 Automatic Capsule Filling / Pill Filler Powder Machine | ||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | ||
| Capacity: | 228000 Capsules/hour | ||
| Dimension(l*w*h): | 1395??1180??2200 Mm | ||
| Weight: | 2200KG | ||
| Type: | Filling Machine | ||
| Voltage: | 220V/380V 50Hz | ||
| Condition: | New | ||
| Driven Type: | Electric | ||
| Power: | 10.5kw | ||
| Automatic Grade: | Automatic | ||
| Warranty: | 1 Year | ||
| Highlight: |
automatic capsule filler, auto capsule filling machine |
||

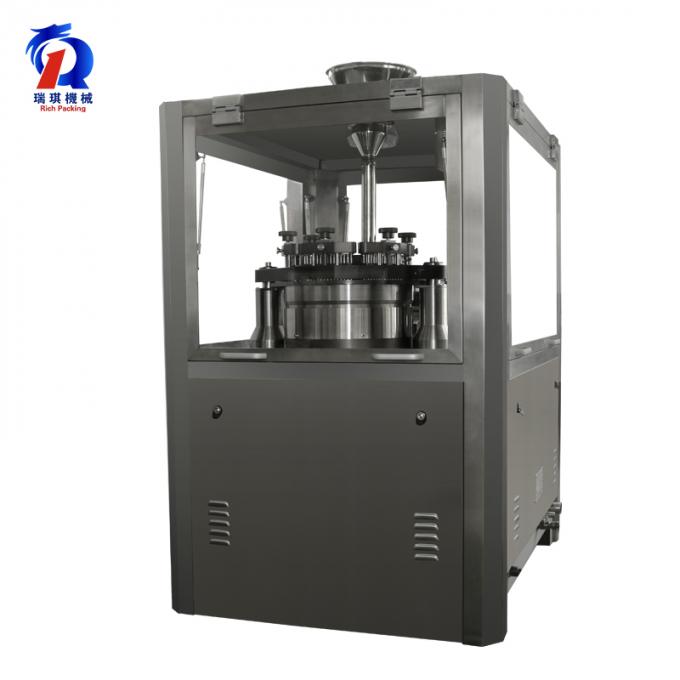

NJP3800 Automatic Capsule Filling / Pill Filler Powder Machine
| Detailed Product Description | |||
|---|---|---|---|
| Production capacity | 228000 pcs/h | ||
| Net weight of machine | 2200Kg | ||
| Overall size of machine | 1395×1180×2200 | ||
| Power | 380/220V 50Hz | ||
| Total power | 10.5KW | ||
| No.of segment bores | 27 | ||
| Vacuum | 120m3/h-0.04-0.08Mpa | ||
| Dust collector | 24.5Kpa 210m3/h | ||
| Noise | <75DB(A) | ||
| Making rate | Empty capsule 99.9% Full capsule 99.8% | ||
| Applicable capsule | 00,0,1,2,3,4,5# | ||
| Filling error | Western medicine:±3% Chinese medicine:±4% | ||
| Applicable product | Power,granule,pellet,tablet | ||
1.The capsule filling machine has the advantages of accurate loading, stable operation and no dust.
2.This pharmaceutiacl automatic capsule filling machine meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .
3.Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow
pollution;
4.Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.
5.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.
6.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.

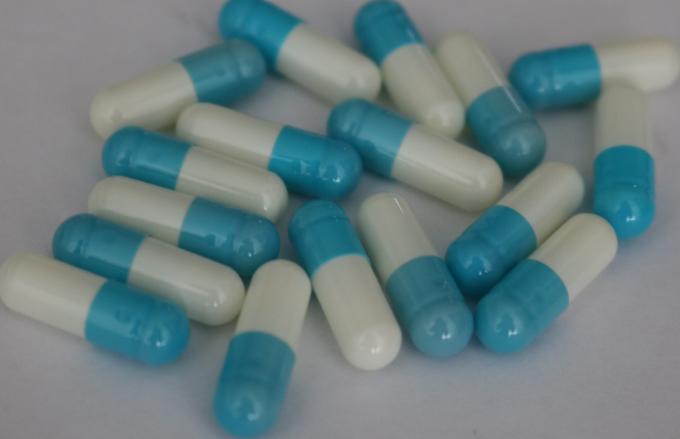

samples of capsule filling machine

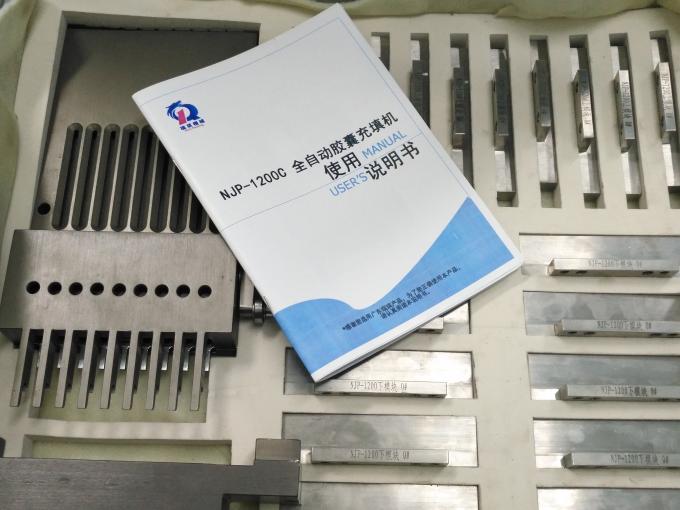

mold of capsule filling machine
