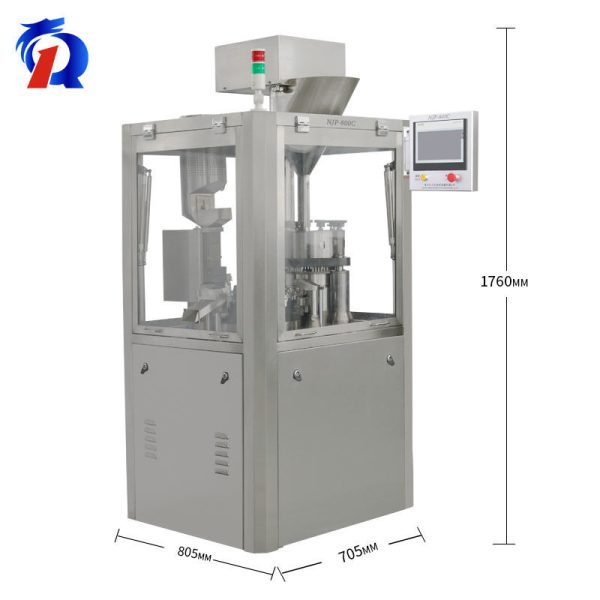

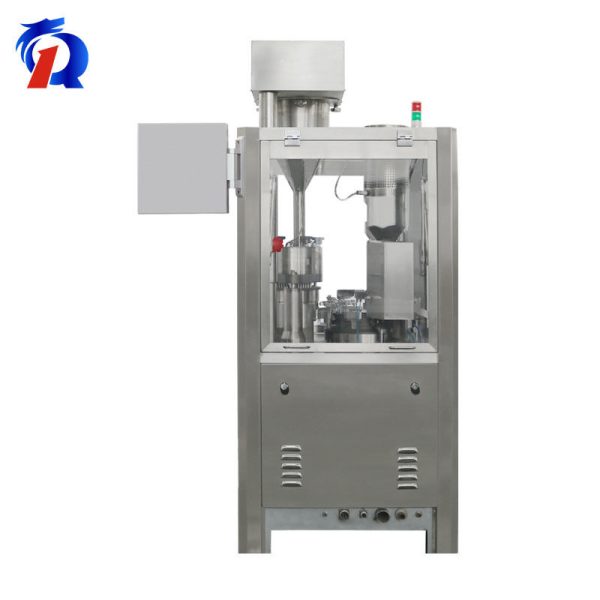

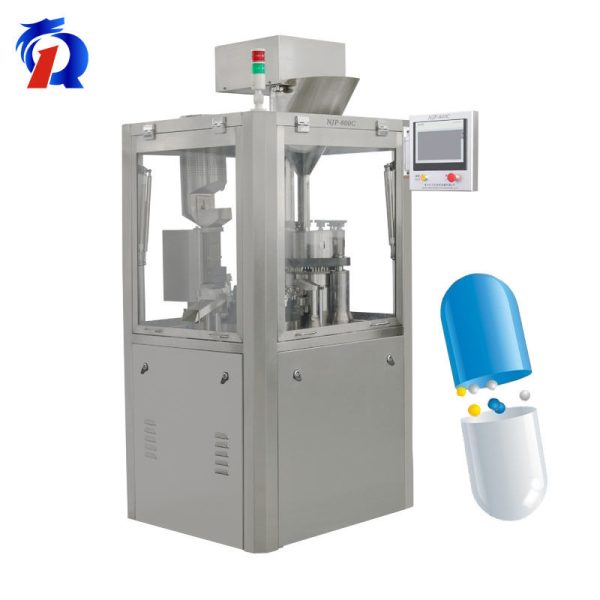

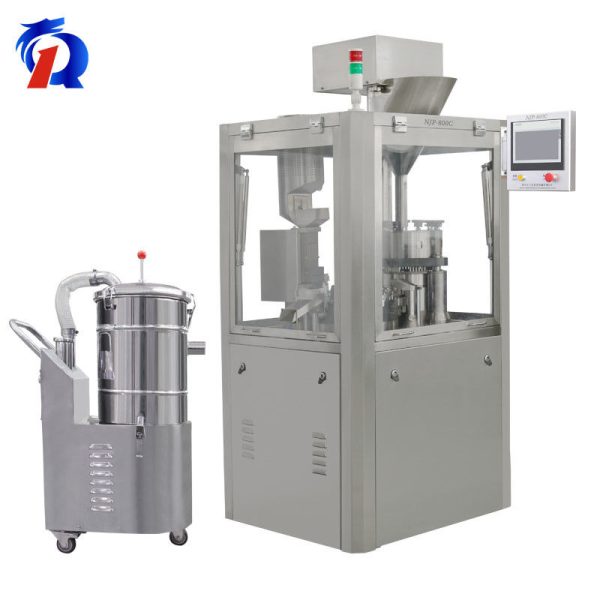

Fully Auto Pharmaceutical Machinery Capsule Filler 00 Size Capsule Filling Machine
Detailed Product DescriptionItem:Capsule Filling MachineError Rate:??3%-??4%Motor Power:5 KwWarranty:1 YearCondition:NewNoise Index:Filling Rate:Empty Capsule 99.9%;Full Capsule 99.8%Highlight:automatic capsule filler, auto capsule filling machineNJP 800 Capsule Filling Machine Capsule Size 000 00 0 #…
- 추정 배송 : 7 날 빠른 배송
- 인증 : CGMP CE ISO SGS 등
- 애프터 송금 제공 : 해외 서비스 기계에 이용할 수있는 엔지니어.
| 자세한 제품 설명 | |||
|---|---|---|---|
| Item: | 캡슐 충전물 기계 | ||
| Error Rate: | ??3%-??4% | ||
| Motor Power: | 5 Kw | ||
| 보증: | 1 년도 | ||
| Condition: | New | ||
| Noise Index: | <75dB(A) | ||
| Filling Rate: | Empty Capsule 99.9%;Full Capsule 99.8% | ||
| 가장 밝은 부분: |
automatic capsule filler, auto capsule filling machine |
||
NJP 800 Capsule Filling Machine Capsule Size 000 00 0 # Filler Machine
1. Capsule Powder Filling Machine
2. Capsule Pellet Filling Machine
3. Hard Capsule Filling Machine
4. Fully Automatic Capsule Machine
5. NJP Capsule Filling Machine
Gmp Standard Njp-800c Capsule Filling Machine Is The Third Generation Of Innovative Products. It Has 6 Technological Innovations And 2 Invention Patents. It Can Fill Powder, Granules And Other Materials Into Hollow Capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). 800c Capsule Filling Machine Can Automatically Finish The Production Process Including Sowing, Capsule Separating, Filling, Locking, Unqualified Capsule Rejected And Finished Products Output. It Has The Advantages Of Accurate Loading, Stable Operation And No Dust.
| 자세한 제품 설명 | ||||
|---|---|---|---|---|
| Filling Machine Model | 200C | 400C | 800C | 1200C |
| 힘 | 3Kw | 3.5Kw | 5Kw | 5.5Kw |
| Production Capacity | 12000 Pcs/h | 24000 Pcs/h | 48000 Pcs/h | 72000 Pcs/h |
| Dimension | 805*705*1760mm | 805*705*1760mm | 865*855*1900mm | 900*870*1950mm |
| 무게 | 600Kg | 600Kg | 900Kg | 1100Kg |
| 자세한 제품 설명 | |||
|---|---|---|---|
| Parts Item | Specificatio | Qty | Manufacturer |
| Touch Screen | 6AV6/648-0BC11-3AX0 | 1 | 독일 지멘스 |
| PLC | 6ES7/288-1ST20-0AA0 | 1 | 독일 지멘스 |
| AC Contactor | 3TB42 | 4 | 독일 지멘스 |
| Button | ZB2-BA3C | 3 | Schneider |
| Main Motor | CH-30-1100W | 1 | Dongli |
| 자세한 제품 설명 | |||
|---|---|---|---|
| 1:NJP-800C Capsule Filling Machine Obtains The National New Patent, Adopts The Three-dimensional Adjustment, Makes The Metering Plate Evenly Force, The Adjustment Volume Is Precise And Quick, And The Powder Recovery Device Is Added, The Recycling Rate Is 100%. |  |
||
 |
2:Utility Patent Rotary Design Capsule Filling Machine, The Sealing Ring Using Imported Sil Silicone Rubber, Effectively Prevent Powder Into The Internal Turntable; Transverse Biaxial Adapt Ptfe Oil-less Bearing, No Need Refueling. | ||
3:Capsule Filling Machine Segmentation Adapt German Cai Si For 3 Seconds (zeiss) Optical Dividing Head Indexing, Indexing Shaft Completed A One-time Processing, Load
