1.1KWピルコーティングマシン1000*1000*1550mm 8Lリキッドタンク付き寸法
詳細な製品説明名前:Pharmaceutical Tablet Coating Machines Film Coating MachineModel:BYC?C800Throughput:30??50kg/timePot Body Inclination:30??Motor Power:1.1kWFan Power:200WLiquid Tank Volume:8LSpray Gun:According To Customers?? RequirementsSpeed:0??32r/minElectric Heating Power:3kWPower Sup…
- 配達予定日 : 7 数日での迅速な配達
- 認証 : cGMP CE ISO SGS など
- アフターサービスの提供 : 海外でも機械の修理に対応できるエンジニア.
詳細な製品説明 | |||
---|---|---|---|
名前: | Pharmaceutical Tablet Coating Machines Film Coating Machine | ||
モデル: | BYC?C800 | ||
Throughput: | 30??50kg/time | ||
Pot Body Inclination: | 30?? | ||
Motor Power: | 1.1kW | ||
Fan Power: | 200W | ||
Liquid Tank Volume: | 8L | ||
Spray Gun: | According To Customers?? Requirements | ||
スピード: | 0??32r/min | ||
Electric Heating Power: | 3kW | ||
Power Supply: | 380V/220V/50Hz | ||
重さ: | 400kg | ||
寸法: | 1000*1000*1550mm | ||
ハイライト: |
pharma coating machine, auto coater machine |

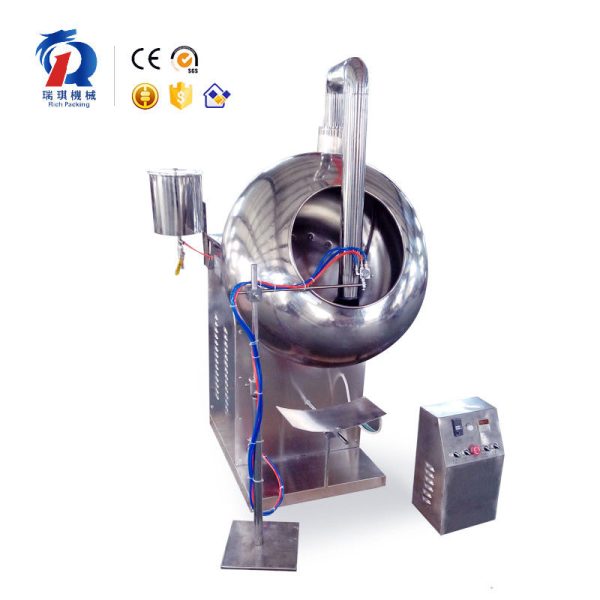

Pharmaceutical Tablet Coating Machines Film Coating Machine
Introduction of coating machine:
The tablets make continuous and complex track movement in the coating pan, let the coating fluid cover the tablet core evenly, the controllable normal-temperature hot air in the pan will dry the tablets at the same time, let the tablet rapidly form a firm, fine, complete and smooth surface film.This coating machine is used to carry out film coating to the core of Chinese Traditional and Western Medicine tablets; the coating machine integrates strong power, weak power, hydraulic and pneumatic.The speed can be controlled, the coating accessories using high atomization spray to tablets surface by the method of automatic electrical control.
Features of coating machine:
The coating machine is a new type equipment improved on the basis of original common type sugar coating machine.The film coating machinery composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, 等.
詳細な製品説明 | |||
---|---|---|---|
モデル | BYC-800 | ||
Throughput | 30??50kg/time | ||
Pot body inclination | 30° | ||
Motor power | 1.1kW | ||
Fan power | 200W | ||
Liquid tank volume | 8L | ||
Spray gun | According to customers’ requirements | ||
スピード | 0??32r/min | ||
Electric heating power | 3kW | ||
Power Supply | 380V/50Hz | ||
寸法 | 1000*1000*1550mm | ||
重さ | 400kg |
